Cablescan - Model 512 Continuity Tester and Build Aid, 512 Test Points

  • Brand : Cablescan
  • Item Number : 115-Model-512
Assembly Equipment is not available in all areas. Please contact your Customer Service Representative at 1-800-405-1730 for more details.
Description Specifications Accessories Customer Reviews

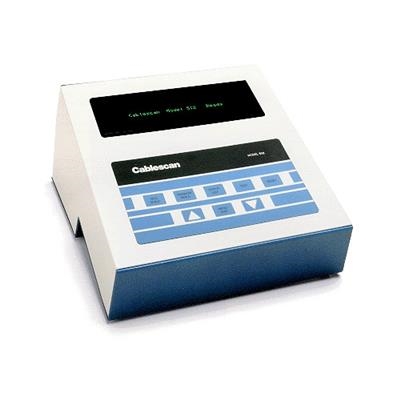

  1. The Cablescan Model 512 also offers easy keypad operation but with an expanded VFD alphanumeric display as well as a built-in floppy diskette drive for an even broader range of testing functions. It has 512 test points and serial interfaces for optional printer and PC connectivity.

    Features
    • Microprocessor-based Tester
    • Appropriate for Jobs of 512 Test Points or Less
    • User-friendly Control Panel
    • Program by Learn-From-Known-Good Harness
    • User Label Capability
    • Program Storage Expandable with Built-in 3½-inch Floppy Drive
    • Automatic Test Scanning and Results
    • Loop Test
    • Assembly Aid - Sequential or Random
    • PC Interface (PC Optional)
    • Wire List Import/Export
    • PC Software Available
    • Printer Interface (Printer Optional)
    • Wire List Hardcopy
    • Error List Hardcopy
  2. Capacity 512 points; 64-pin connector
    Operating Speeds All Points Opened: < 3sec All Points Shorted: < 13 sec Test: <500 msec Self-Test: < 1sec Self Learn: < 1 sec Load From Floppy: < 2 sec
    Sensitivity Short: <100 ohms Open: > 1.0 kohms Continuity: 100 ohms Body Current: <5 μa Test Current: < 3 ma
    Test Voltage 10 vdc, max
    Interwire Capacitance .01 μf, max
    Operating Temperature 32°F to 105°F (0°C to 40°C)
    Storage Temperature -40°F to 165 °F (-40°C to 74°C)
    Display 40 character alphanumeric VFD: FROM point -8 characters TO Point - 8 characters Circuit Label: 12 Characters
    Program Storage Battery backed RAM Floppy Diskettes- 112 Programs Each PC Interface (serial port)
    Shipping Weight 12 lbs (5.4kg)
    Dimensions (W x D x H) 11.5 x 13 x 5.5" (29.2 x 33 x 14 cm)
    Power Source 110 to 252 V, 50/60 Hz Automatically adjusts to input voltage
