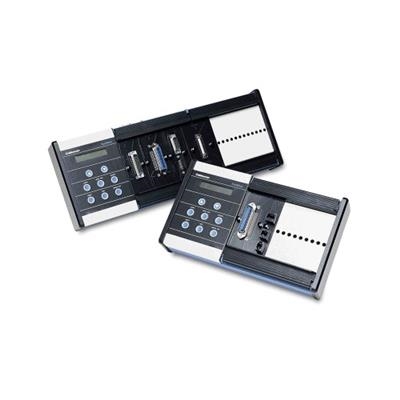

The TestMate continuity tester features a universal interface fixture that accommodates adapter cards for quick changes in harness setups. Adapters can be exchanged in seconds to adapt quickly to any of a variety of wire-harness/cable connectors.

FEATURES
  • Microprocessor-based Tester
  • Universal interface
  • Adapter cards for connector types
  • Accommodates wide variety of cable connectors
  • Program by Learn-From-Known-Good Harness
  • Signature Codes
  • User Label Capability
  • Automatic Test Scanning and Results
  • Loop Test
  • Assembly Aid - Sequential or Random
  • PC Interface (PC Optional)
  • Wire List Import/Export
  • PC Software Available
  • Printer Interface (Printer Optional)
  • Wire List Hardcopy
  • Error List Hardcopy
Capacity 128 test points (256 w/ expansion)
Operating Speeds All Points Opened: < 3sec All Points Shorted: < 13 sec Test: <500 msec Self Test: < 1sec Self Learn: < 1 sec Load From Floppy: < 2 sec
Sensitivity Short: <100 W Open: > 1.0 kW Continuity: 100 W Body Current: <5 μa
Test Voltage 10 vdc, max
Interwire Capacitance .01 μf, max
Operating Temperature 32°F to 105°F (0°C to 40°C)
Display 16 character alphanumeric LCD
Program Storage Internal: Battery backed RAM containing Up to 56 program locations PC Interface: (Serial Port)
Shipping Weight 5 lbs (2.3kg)   With expansion unit: 7 lbs (3.2kg)
Dimensions (W x D x H) 11.5 x 6.75 x 2.5" (29.2 x 17.1 x 6.3 cm)   With Expansion Unit: 18.0 x 6.75 x 2.5" (45.7 x 17.1 x 6.3cm)
Power Source 115 V (100 -126 V) at 60 Hz, or 230V (208-252V) at 50 Hz (Power pack change)
