General Specifications | |
Fluxer Type: | Stationary ultrasonic nozzle with air-operated spray dispersion assembly |
Construction: | Stainless steel, titanium, Teflon®, polypropylene, Delrin®, Ryton®(flux wetted materials) |
Controller: | PLC with NVRAM |
Analog Channels: | Up to 8 with 12-bit resolution |
Display: | Backlit LCD (4 x 40) |
Flux Types: | RMA, RA, Alcohol-based low solids, OA, VOC-free |

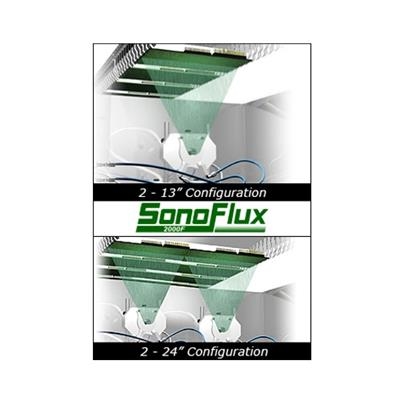

PCB Width Range: | 2-13 inches (50-330 mm) or 2-24 inches (50-610 mm) |
Flux Deposition Range: | 300 - 2500 µg/in2 (for typical no-clean fluxes) |
Deposition Uniformity: | ± 5% |
Deposition Repeatability: | ± 2% |
