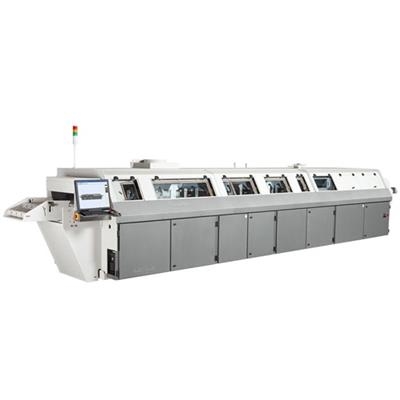

ITW EAE- Electrovert - Aquastorm 200 In-Line, High Volume, Cleaning System

  • Brand : ITW EAE
  • Item Number : 40-Aquastorm 200
Assembly Equipment is not available in all areas. Please contact your Customer Service Representative at 1-800-405-1730 for more details.
Description Specifications Accessories Customer Reviews
  1. As high-reliability PCBs become miniaturized, denser and more complex, board assemblers are seeking ways to increase board level reliability, and cleaning is seen as a process solution.  Additionally, the importance of cleaning electronic assemblies increases dramatically in lead-free soldering applications.

    The Electrovert® Aquastorm™ series precision cleaning systems are designed to provide complete cleaning process flexibility, superior cleaning and drying performance, process monitoring, and reliability.  The Electrovert approach is to provide the market with a range of Aquastorm series cleaners that utilize technologies that exceed cleaning and drying expectations.
  2. Aquastorm 200 7333mm (287") x 1518mm (60") x 1302mm (51")
    Aquastorm 200 Torrid Zone 8045mm (317") x 1518mm (60") x 1302 mm (51")
    Cleaning Dimensions 508mm (20") x 102mm (4") 610mm (24") x 102mm (4") - optional
    Exhaust Requirements Wet Section:   One (1) 309mm (12.17") stacks: 34m3/min (1200 SCFM) @ 25mm (1") of H2O static pressure
    With Dual Dryer Option: One (1)309mm (12.17") stacks: 34m3/min (1200 SCFM) @ 25mm (1") of H2O static pressure
    With Torrid Zone Option: One (1) 152.4mm (6") exhaust #1: 14.1 - 19.8m³/min (500 - 700 SCFM) @ 25mm (1") of H2O static pressure; One (1) 152.4mm (6") exhaust #2: 8.5 - 11.3m3/min (300 - 400 SCFM) @ 25mm (1") of H2O static pressure
    Standard Utility Requirements 460 Volt, 60 Hz, 3 Phase, 198 amps maximum
    Alternate voltages available
    Drain Plumbing Requirements Main drain line: 1 ½" male pipe thread stainless steel
    Closed-loop drain: 1 ½" male pipe thread stainless steel

    Download Technical Datasheet
