PACE - ST-400 Radiant Preheat System

PACE - ST-400 Radiant Preheat System

ST-400 Radiant Preheat System

PACE - ST-400 Radiant Preheat System

  • 70-8007-0435
  • Pace
  • 1
  • Call Customer Service

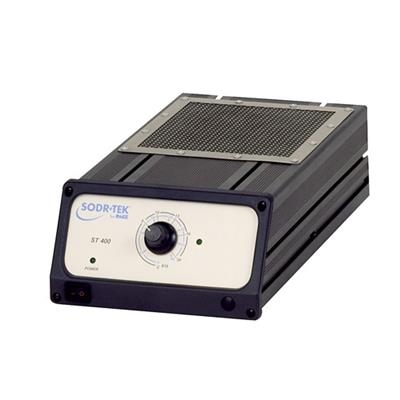

The ST 400 is an analog closed loop temperature controlled radiant 400 watt pre heater. The heating area is 140mm x 140mm (5.5" x 5.5"). This preheater is ideal for heavy PCBs and for area array applications as the medium wave IR delivers the most penetrating and even heating available.This system is used to preheat the work piece allowing the use of lower temperature setting for rework and soldering tools, as well as reduce the time spent duringthe soldering process

The ST 400 can be used as a stand-alone unit or with either the ST 525/ST 550 PCB holder.

Download Technical Datasheet

Power Requirements: 197-253 VAC, 50/60 Hz 425Watts max.
Weight: 2.3Kg (5lbs.)
Dimensions: 105mm H x 178mm W x 318mm D (4.1" H x 7" W x 12.5" D)
Temperature stability: ° 3°C (° 5 °F) at idle temp.
Absolute Temperature Stability: Meets or exceeds ANSI-J-STD
Temperature range 37-205°C (100-400°F)
