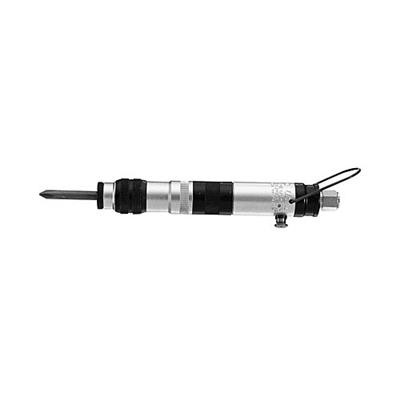

AIMCO - Light Touch Pneumatic Screwdriver - 1.3 to 9.7 ft/lb

AIMCO - Light Touch Pneumatic Screwdriver - 1.3 to 9.7 ft/lb

US-LT20B-10, AIMCO - Light Touch Pneumatic Screwdriver - 1.3 to 9.7 ft/lb

AIMCO - Light Touch Pneumatic Screwdriver - 1.3 to 9.7 ft/lb

  • 5-US-LT20B-10
  • AIMCO
  • Call Customer Service
  • Call Customer Service

Precise reaction to a preset torque makes the LT series the choice for critical torque applications where utmost accurate torque control is required, such as plastics, electronics or light assembly.

  • Ergonomic neoprene grips standard with Models LT10B through LT40B.
  • Series Push-to-Start operation Provides a precise shut-off to the preset torque. The clutch mechanism shuts off the air supply when the desired torque level is met, preventing over-torque. This also instantly signals the end of the cycle to the operator.
  • The torque reaction felt when proper torque is reached is minimized by the innovative clutch design. Also, this series of tools operates far from the upper range of the power curve, maintaining maximum speed during rundown, even at higher torque.
  • Continuous drive clutch provides fast operation for hard and soft joints.
  • Designed to reduce overall weight and length by as much as 30% over conventional tools Wide variety of speed and torque.
  • Oil free rotor blades provide a clean, slick-free environment. This is especially important for applications where air quality is important.
  • Easy to operate locking reverse button makes disassembly simple.
  • Each model is equipped with its standard clutch spring.
  •  Additional clutch spring specifications available. Recommended air pressure: 85 psi





Specifications:

Model: US-LT20B-10
Air Consumption: 5.6 ft3/min
Air inlet thread: 1/8"
Center to Outside: 0.5"
Free Speed: 1,000 rpm
Length: 7"
Torque Range: 3.1" – 9.68 lbs
Weight: 0.7 lbs
