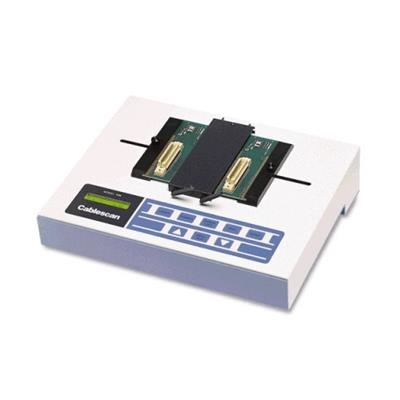

Cablescan - Model 128PC Continuity Tester with Built In Fixture, 128 Test Points

Cablescan - Model 128PC Continuity Tester with Built In Fixture, 128 Test Points

Cablescan - Model 128PC Continuity Tester with Built In Fixture, 128 Test Points

Cablescan - Model 128PC Continuity Tester with Built In Fixture, 128 Test Points

  • Cablescan
  • 115-Model-128PC
Some items may not be available in all areas. Please contact our Customer Service team at (800) 405-1730 or info@murraypercival.com for more details and quoting info.
Email Print
FEATURES
  • Microprocessor-based Tester
  • Built-in Adapter Card Fixture
  • Accommodates wide variety of cable connectors
  • Appropriate for Jobs of 128 Test Points or Less
  • User-friendly Control Panel
  • Program by Learn-From-Known-Good Harness
  • Signature Codes
  • User Label Capability
  • Automatic Test Scanning and Results
  • Loop Test
  • Assembly Aid - Sequential or Random
  • PC Interface (PC Optional)
  • Wire List Import/Export
  • PC Software Available
  • Printer Interface (Printer Optional)
  • Wire List Hardcopy
  • Error List Hardcopy
Capacity 2 points; 64-pin connector
Power Source 115 V∼ (100- 126V∼) at 60Hz, or 230V∼ (208-252V∼) at 50Hz. (Internally Selectable)
Sensitivity Short: <100 ohms Open: > 1.0 kohms Continuity: 100 ohms Body Current: <5 μa
Test Voltage 10 vdc, max
Interwire Capacitance .01 μf, max
Operating Temperature 32°F to 105°F (0°C to 40°C)
Display 16 character alpha numeric LCD:
Program Storage Internal: Battery backed RAM with 56 memory locations PC Interface: (serial port)
Shipping Weight 7lbs (3.2kg)
Dimensions (W x D x H) 13.75 x 11.25 x 3.5" (34.3 x 28.6 x 8.9 cm)
