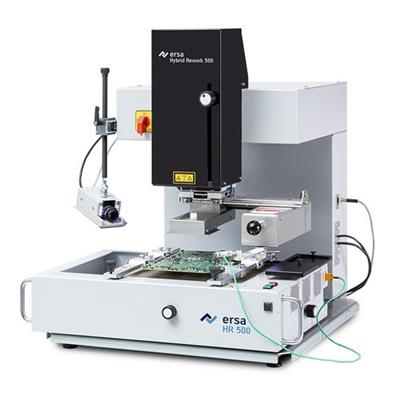

Rework of electronic standard modules

Technical Highlights:

  • 900 W Hybrid high-performance heating element
  • Full-area 1,600 W IR bottom heater
  • High-resolution cameras for placement and process monitoring
  • Ergonomically optimal system operation
  • Modern, user-friendly operating software
Request Virtual Demo HERE

Dimensions (W x D x H) in mm
655 x 645 x 710
Weight in kg
approx. 55
Antistatic Design (y/n)
yes
Power Rating in W
2,500
Nominal voltage in V AC
220 V - 240 VAC, 50-60 Hz, 16 A
Upper heating
Hybrid heater 900 W, 70 x 70 mm
Lower heating
IR emitter (2x 800 W), 270 x 270 mm
Measuring channels
2x K-Type
Position laser
Class II
PCB size in mm
up to 380 x 300 mm (+x)
Component size in mm
from 1 x 1 up to 50 x 50 mm
Placement camera, upper
5 MP GigE color camera, field of view 50 x 50 mm
Usable working distance (typ.)
60 mm to top heater, 35 mm to bottom heater
Test symbol
CE
Operating software
HRSoft 2 - suitable for Windows 8 and Windows 10
Option
Reflow process camera: 10 MP, CMOS GigE color camera, 25 mm focal length, illumination 2x LED, adjustable
