Eubanks - Autostrip 4900, All Electric, Programmable Wire Stripper - 10 AWG to 1/4" Diameter

Eubanks - Autostrip 4900, All Electric, Programmable Wire Stripper - 10 AWG to 1/4" Diameter

Eubanks - Autostrip 4900, All Electric, Programmable Wire Stripper - 10 AWG to 1/4" Diameter

Eubanks - Autostrip 4900, All Electric, Programmable Wire Stripper - 10 AWG to 1/4" Diameter

  • Eubanks
  • 130-AutoStrip-4900
Some items may not be available in all areas. Please contact our Customer Service team at (800) 405-1730 or info@murraypercival.com for more details and quoting info.
Email Print

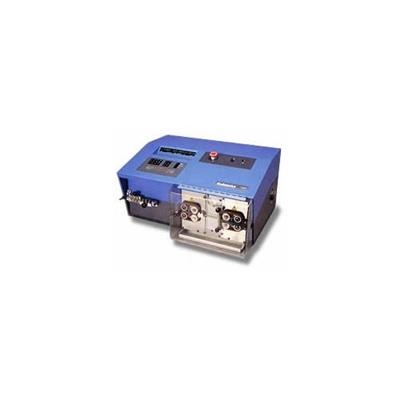

The Model 4900 is a compact AutoStrip, a small machine with big machine performance. Like its stable mates, it will cut and strip wire as small as 32 AWG (0.03mm2). It will handle wire as large as 10 AWG (6mm2) and flat cable and multi-conductor cable up to 1/4" (6mm) in diameter or width.

The Model 4900 uses the same Eubanks blades as the Model 7400. Strip lengths range from 1/32" x 1/32" to 2 1/2" x 2 1/2" (0.8mm x 0.8mm to 64 x 64mm). In other words, it covers most wire prep requirements. A compact tool is used to load the blades into the 4900. The 4900 can be programmed to do step-stripping and batch counting.
Strip Both Ends pieces per hour Cut Only pieces per hour
Wire Length Single wire Dual wire Single wire Dual wire
4" (100mm) 3,100 6,200 5,000 10,000
20" (500mm) 2,500 5,000 3,600 7,200
40" (lM) 2,000 4,000 2,800 5,600
100" (2.5M) 1,300 2,600 1,600 3,200
394" (10M) 500 1,000 525 1,050
600" (15M) 320 640 330 660
1200" (30M) 180 360 190 380

Dimensions 12"H x 20"W x 18"D (305mm x 508mm x 460mm)
Weight Net: 75 lbs. (34kg) Shipping: 125 lbs. (57kg)
