Some items may not be available in all areas. Please contact our Customer Service team at (800) 405-1730 or info@murraypercival.com for more details and quoting info.

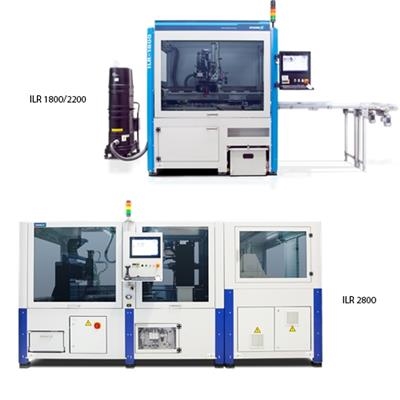

SCHUNK ILR (In-Line Router) depanelling systems: ILR-1800 ILR-2200 and ILR-2800


The SCHUNK ILR's can all come with an optional palletizing system, the PAL-1400. PAL-1400 was designed specially for stress-free depanelling. The main focus was put on high flexibility and throughput. With the specially designed fast-acting PCB feeder and the use of highly dynamic actuators with continuous path control for detachment and handling of PCBs, the highest possible throughput is achieved. The simple and light-weight design of the PCB grippers minimizes tool costs and together with a gripper change system guarantees highest flexibility and minimum set-up time.



Features:

  • Linear motor driven fast acting panel in-feed for minimum loading time
  • Shortest possible detachment time guaranteed by highly dynamic milling gantry system with linear motor actuators with special milling brush hold-down
  • Short handling time for detached components achieved by linear motor-based handling system with continuous path control
  • Highly flexibility and minimum set-up time with simple and automatically exchangeable multi-panel grippers
  • Optional expansion by integrated palletizing system
