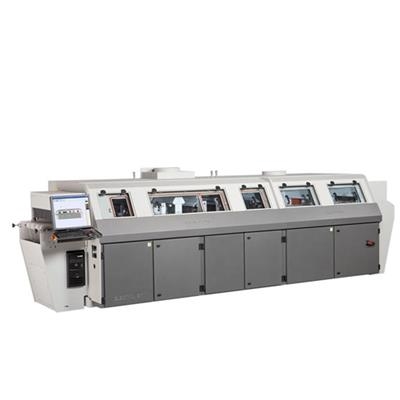

The ELECTROVERT Aquastorm is a versatile, high-performance cleaning system designed to optimize the PCB cleaning process while minimizing overall cost. The Aquastorm combines the most advanced cleaning technologies in an energy-efficient design. Available in two platforms, the Aquastorm 100 incorporates a Windows®-based operating system, chemistry capability and advanced drying options.

Unsurpassed cleaning technology
  • The patented Hurricane Jet applies high impact force for tight spaces
  • The unique oscillating action of the patent-pending S-Jet nozzle technology provides maximum flooding
  • V-Jet/JIC Intermix greatly improves cleaning under low standoff components
  • Chemical isolation provides optimal process separation and minimizes chemistry consumption

High performance drying
  • Advanced Torrid Zone drying technology dries complex assemblies to within 0.1 g of prewashed weight
  • ElectroAir airknife design maximizes impact force for exceptional penetration under low standoff components

Advanced system technology
  • Windows®-based operator interface monitors and logs important cleaning parameters and provides traceability with barcode capabilities
  • Simplified, stainless steel plumbing with quick disconnect fittings
Machine Dimensions 4910mm (193") Long x 1518mm (60") Wide x 1302mm (51") High
Cleaning Dimensions 508mm (20") x 102mm (4") 610mm (24") x 102mm (4") - optional
Exhaust Requirements Wet Section:   One (1) 309mm (12.17") stacks: 34m³/min (1200 SCFM) @ 25mm (1") of H2O static pressure
With Dual Dryer Option: One (1)309mm (12.17") stacks: 34m³/min (1200 SCFM) @ 25mm (1") of H2O static pressure
With Torrid Zone Option: One (1) 152.4mm (6") exhaust #1: 14.1 - 19.8m³/ min (500 - 700 SCFM) @ 25mm (1") of H2O static pressure; One (1) 152.4mm (6") exhaust #2: 8.5 - 11.3m³/min (300 - 400 SCFM) @ 25mm (1") of H2O static pressure
Standard Utility Requirements 460 Volt, 60 Hz, 3 Phase, 198 amps maximum Alternate voltages available
Drain Plumbing Requirements Main drain line: 1 ½" male pipe thread stainless steel
Closed-loop drain: 1 ½" male pipe thread stainless steel
Supply Water Requirements Tank fill line: 19mm (0.75") stainless steel fitting (3/4") - 19-95 l/min (5-25 gpm) Final rinse supply: 1.9mm (0.75") stainless steel fitting (3/4") - 15.14 l/min (4.0 gpm) @ 50 psi, 60°C (140°F) deionized H2O
