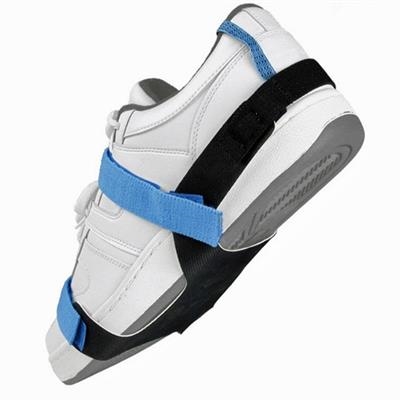

Desco - Sole Foot Grounder - Large, 2 Meg
Desco - Sole Foot Grounder - Large, 2 Meg
-
Add to Cart
-
-
- $15.19
-
- Large Contact Area on Ball of Foot. The combination of additional surface area and the contact point on the ball of the foot forms a more consistent path to ground.
- Tear Resistant Rubber With Inner Scrim. Reinforced material prevents material from tearing – increasing the service life
- Velcro ® Stretch Hook And Loop Fastening System. Size adjustable material expands to fit most shoe sizes comfortably and flex during walking
- 30" Long, 8 Conductive Strand Nylon Polyester Grounding Tab. Additional conductive material provides reliable connection with operator’s sweat-layer
- Two Megohm Series Resistor. To protect operator from accidental contact with equipment line voltage
- UL Listed
- Date Coded. Provides lot traceability to ensure quality control and tracking information
Made In The United States of America
Per ESD SP9.2 APPENDIX B - Foot Grounder Usage Guidance “Compliance verification should be performed prior to each use (daily, shift change, etc.). The accumulation of insulative materials may increase the foot grounder system resistance. If foot grounders are worn outside the ESD protected area testing for functionality before reentry to the ESD protected area should be considered.”
Per ANSI/ESD S20.20 Paragraph 6.2.2.2 Personnel Grounding Guidance, “ESD protective flooring, used with approved footwear, may be used as an alternative to the wrist strap system for standing operations.”
ESD Handbook TR 20.20 paragraph 5.2.3 “If the contact area between the bottom of the foot and the floor is not continuous, charge generation may occur especially when a person is walking. Heel straps must be worn on both feet to minimize the amount of time that the body of the person is isolated from ground while walking.”
