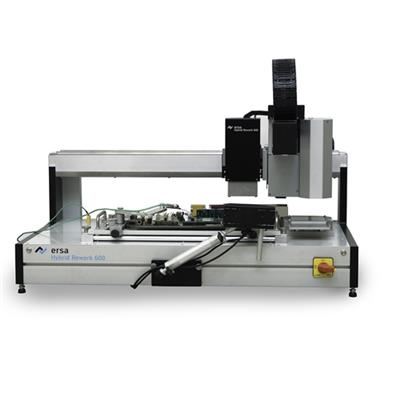

ERSA HR 600/2 Hybrid Rework System

ERSA - HR 600/2 Hybrid Rework System

  • ERSA
  • HR600/2
Some items may not be available in all areas. Please contact our Customer Service team at (800) 405-1730 or info@murraypercival.com for more details and quoting info.
Email Print

New definition of board repair -
automatic, flexible and process reliable!

Technical Highlights:

  • Highly efficient 800 W hybrid heating head
  • Homogeneous, large-area IR bottom heating with 3 heating zones (800 W each)
  • Automatic and precise component alignment with the help of machine vision
  • Highly accurate, motor-driven axis system
  • for component placement (+/- 0.025 mm)
  • User independent, reproducible repair results guaranteed
  • Process control and documentation via the operator software HRSoft
  • Fully automatic or semiautomatic operation
  • Suitable for the use of the Dip&Print Station
Request Virtual Demo HERE


Dimensions (W x D x H) in mm
850 x 660 x 620
Weight in kg
57
Antistatic Design (y/n)
y
Power Rating in W
3,200
Nominal voltage in V AC
230
Compressed air connection
6-10 bar (free of oil), 1/4 inch quick bar connect
Upper heating
Hybrid emitter (2 x 400 W), 60 x 60 mm
Lower heating
IR emitter (3 x 800 W), 380 x 250 mm
PCB size in mm
from 20 x 20 to 390 x 285 (+x)
Component size in mm
from 1 x 1 to 50 x 50
Operation
Windows PC
Test symbol
CE
Option
reflow process camera: 10 MP CMOS USB color camera, 25 mm focal width; lighting: 2x LED point light source, dimmable
