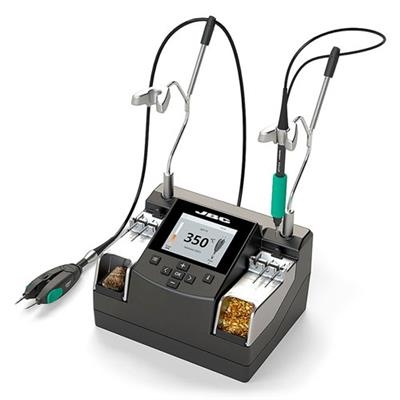

JBC - Nano Rework Station with NT115 Handpiece and AN115 Tweezer - 120V

JBC - Nano Rework Station with NT115 Handpiece and AN115 Tweezer - 120V

JBC - Nano Rework Station with NT115 Handpiece and AN115 Tweezer - 120V

JBC - Nano Rework Station with NT115 Handpiece and AN115 Tweezer - 120V

  • 23-NASE-1C
  • JBC
  • Call Customer Service
  • Ships within 2 Weeks
Email Print
  • Add to Cart
      • $2,100.00
The NASE Station is the best solution for soldering and rework of SMT components requiring the highest precision.

  • Works with the JBC Most Efficient Soldering System and the intelligent Hibernation mode
  • Comes with the NT115-A Nano Handle and the AN115-A Adjustable Nano Tweezers.
  • Short distance from the tip to the handle offers maximum control even when using a microscope.
  • NASE-C Rework Station works with the C115 Cartridge Range.
  • As all the JBC Stations, the NANE has a menu with more than 10 parameters to customize the control unit.
Product Composition
  • 1 NAE Control Unit
  • 1 AN115-A Adjustable Nano Tweezers
  • 1 NT115-A Nano Handle
  • 1 Conical ID 0.1
  • 1 Conical ID 0.3
  • 2 C115105 Conical Bent ID 0.3
  • 1 Conical ID 0.8
  • 1 Knife 2.5 x 0.3
  • 2 Chisel 1 x 0.3
  • 1 P-405 Pedal
SPECIFICATIONS
Selectable Temperature
90 to 450 ºC / 190 to 840 ºF
CONNECTIVITY
Pedal ( 1 per tool)
Connect a pedal (ref.P-405) to control the tools. It allows using Nano tweezers for soldering.
USB-B (rear)
Software PC / Traceability
USB-A (front)
Firmware update Soldering Graphics management
Robot
RS-232 remote control or Smart Fume Extractor connection.
Equipotential bonding
Optional connection to EPA
ESD/EOS
ESD safe
Tip to ground resistance
< 2 ohms
Tip to ground voltage
< 2 mV RMS
