ERSA - HR200 Compact Hybrid Rework System

ERSA - HR200 Compact Hybrid Rework System

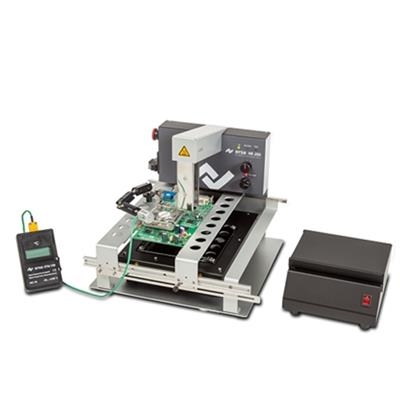

HR 200 Compact Hybrid Rework Station, 400 W (+ 800 W)

ERSA - HR200 Compact Hybrid Rework System

  • ERSA
  • HR200
Some items may not be available in all areas. Please contact our Customer Service team at (800) 405-1730 or info@murraypercival.com for more details and quoting info.
Email Print

Compact Hybrid Rework Station, 400 W (+ 800 W)

Simple and fast desoldering and soldering of SMDs:

  • Highly efficient, long-life 400 W hybrid heating head
  • Optional with 800 W IR-bottom heating
  • Very short soldering times feasible
  • Activation with safety foot switch
  • Operation LEDs on the system
  • Intuitive operation without software
View ERSA Rework Brochure

Dimensions (W x D x H) in mm
300 x 300 x 280
Weight in kg
3,7
Antistatic Design (y/n)
y
Power Rating in W
400 + 800
Nominal voltage in V AC
230
Upper heating
Hybrid emitter 400 W, 30 x 30 mm
Lower heating
IR emitter 800 W, 150 x 150 mm
PCB size in mm
from 20 x 20 to 215 x 300 (+x)
Component size in mm
from 1 x 1 to 30 x 30
Test symbol
CE
