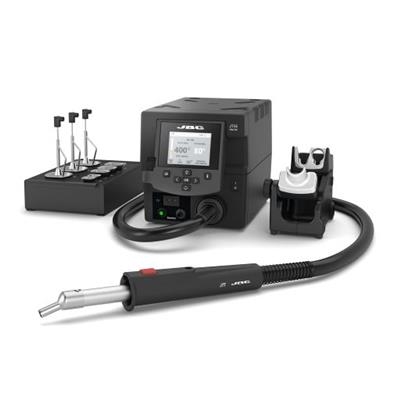

JBC - JT Hot Air Station
JBC - JT Hot Air Station
-
Add to Cart
-
-
- $3,235.00
-
JTSE is a high powered Hot Air Station capable of reworking all types of SMDs.
The combination of the exclusive JBC hot air system with protectors, tripods and extractors ensures desoldering components easily and safely, concentrating the heat on the selected component.
Connecting an external thermocouple provides a high-precise close-loop control of the component/PCB during the rework process or can also be used to protect a component or a specific area of the PCB.
As all the JBC Stations, the JTSE has a menu with more than 10 parameters to customize the control unit.
The combination of the exclusive JBC hot air system with protectors, tripods and extractors ensures desoldering components easily and safely, concentrating the heat on the selected component.
Connecting an external thermocouple provides a high-precise close-loop control of the component/PCB during the rework process or can also be used to protect a component or a specific area of the PCB.
As all the JBC Stations, the JTSE has a menu with more than 10 parameters to customize the control unit.
Peak power
700W
Selectable temperature
150 to 450 °C / 300 to 840 °F
Air flow regulation
5 to 50 SLPM
Vacuum
30% / 228 mmHg / 9 inHg
Profiles
25 (up to 10 steps for each), 1 preset profile
Type K TC connector
1 for Control & Protection
ESD safe
Meet ANSI / ESD S20.20-2021
Equipotential bonding
Connection to EPA
USB-A
Firmware update
Graphics and profiles
USB-B
PC communications
RJ12 Connector
Remote control or FAE Fume Extractor connection
Pedal Connector
Tool control
