JBC - Compact Precision Soldering Station, 120v

JBC - Compact Precision Soldering Station, 120v

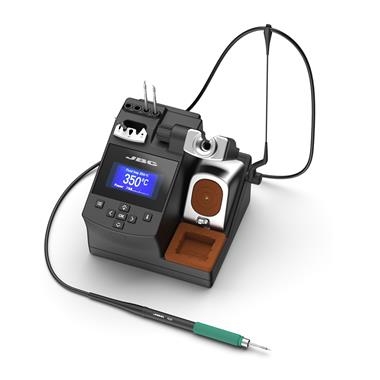

Compact Precision Soldering Station, 120v

JBC - Compact Precision Soldering Station, 120v

  • 23-CD-1SQF
  • JBC
  • Call Customer Service
  • Ships within 2 Weeks
Email Print
  • Add to Cart
      • $725.00
Accuracy is the right word!

Ideal for soldering SMD. It provides all the advantages of the JBC Most Efficient Soldering System in the smallest footprint:

• JBC Intelligent Heat Management provides the best soldering quality and with, Sleep & Hibernation Modes extend tip life till 5 times.

• Complete Tip Cleaning System, with exclusive fast and safe Cartridge Exchanger.

• Connectivity:
    - Fume Extractor
    - Data Download
    - Software Updates
    - Traceability

• Includes T210 Precision Handle that works with our wide range of C210 Cartridges..


Peak power (Tool)40 W
Selectable temperature90 to 450 ºC / 190 to 840 ºF
Idle temp. stability (still air)±1.5 ºC - ±3 ºF (Meets and exceeds IPC J-STD-001)
Temperature accuracy±3 % (Using reference cartridge)
Temp. adjustment±50 ºC / ±90 ºF (Through station menu setting)
Tip-to-ground resistance<2 ohms
Tip-to-ground voltage<2 mV RMS
USB-BPC communication
FAE / Robot connectorRemote control or FAE Fume Extractor connection
Earthing fuseF 1.25A
ESD safeMeet ANSI/ESD S20.20-2021


Weight and Dimensions
Control Unit170 x 176 x 145 mm / 2.70 kg.
6.69 x 6.93 x 5.71 in / 5.95 lb
Package234 x 234 x 258 mm / 3.27 kg
9.21 x 9.21 x 10.16 in / 7.21 lb.
