Purex - Fume Cube - Fume Extractor with 2 Arms

Purex - Fume Cube - Fume Extractor with 2 Arms

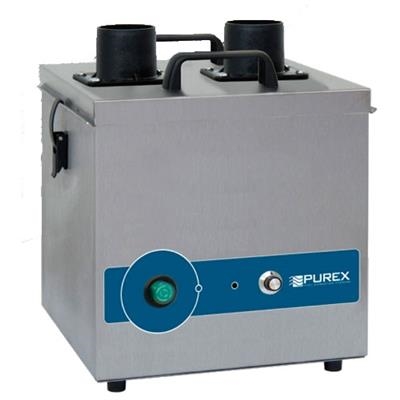

Purex FumeCube Dual Port

Purex - Fume Cube - Fume Extractor with 2 Arms

  • 73-072095-2
  • Purex
  • Call Customer Service
  • Call Customer Service
Email Print
  • Add to Cart
      • $1,392.00
Analogue units are an economical choice with same quality build and functionality; less digital displays. All units come equipped with filter blocked warning capabilities; both visual and audible which helps avoid down time. See Specs tab for more info.

Included
  • HEPA/Chemical Filter (73-110536)
  • Pre-Filter, F5 Pad (73-200036)
  • Connection Kit (73-100295)
    • 1 x 50mm x 2m flexible hose
    • 2 x connecting cuffs
    • 1 x clamped bench bracket
    • 1 x 38mm stainless steel flexible arm
    • 1 x 38mm pen nib
    • 1 x 95mm conical cowl
Unsure of which filters to purchase? Check out our Purex Filter Guide for information on the different types of filters available and which ones are compatible with your fume extractor.

Download Product Brochure

Specs & Features
  • Available with single or dual arm kits; multi-voltage
  • Visual and audible filter blocked warning alerts the operator when a filter starts to block and filter should be changed. This would avoid any down time
  • LED filter status: Green = OK; Yellow= Filter nearly full; RED = Replacement filter is needed
  • Automatic electronic flow control – maintains a constant extraction rate even as the filter blocks
  • Adjustable airflow
  • Varicolor filter blocked warning system
  • Low capital and running costs
  • Quick chang, patented labyrinth pre-filters deliver longer filter life
  • Submicronic (HEPA) filtration removes 99.997% of particles down to 0.03 microns
  • Activated carbon filtration removes harmful gas
  • Simple to install and quiet in operation
  • Easy to relocate
  • Precision made from Stainless steel
  • Remote interface capability
  • Dimensions: 308mm (w); 294mm (d);366mm (h); 17 kg (w)
  • Wattage: 0.14kW; Frequency 50Hz/60Hz
