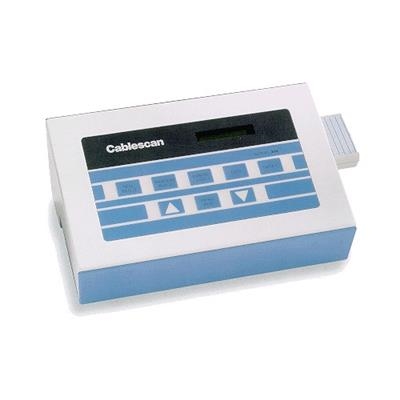

Cablescan Model 256/PC offers an easy keypad operation and LCD alphanumeric display for a broad range of testing functions. It provides a 256 point capability, plus a serial interface for optional printer or PC connectivity.

FEATURES
  • Microprocessor-based Tester
  • Appropriate for Jobs of 256 Test Points or Less
  • User-friendly Control Panel
  • Program by Learn-From-Known-Good Harness
  • Signature Codes
  • User Label Capability
  • Program Storage Expandable by Plug-in EEPROMs
  • Automatic Test Scanning and Results
  • Loop Test
  • Assembly Aid - Sequential or Random
  • PC Interface (PC Optional)
  • Wire List Import/Export
  • PC Software Available
  • Printer Interface (Printer Optional)
  • Wire List Hardcopy
  • Error List Hardcopy
Capacity 64 points; 64-pin connector
Operating Speeds Test: <500 msec Self-Test: < 1sec Self Learn: < 1 sec
Sensitivity Short: <100 ohms Open: > 1.0 kohms Continuity: 100 ohms Body Current: <5 μa
Test Voltage 10 vdc, max
Interwire Capacitance .01 μf, max
Operating Temperature 32°F to 105°F (0°C to 40°C)
Display 16 character alpha numeric LCD: FROM point -6 characters TO Point - 6 characters
Program Storage Internal: Battery backed RAM with 8 memory locations Removable: EEPROMs with 16 memory Locations each PC Interface: (serial port)
Shipping Weight 6lbs (2.7kg)
Dimensions (W x D x H) 11.0 x 3.25 x 2.0" (27.9 x 8.2 x 5.0 cm)
Power Source 100-126 V∼, or 208-252 V∼, at 50/60Hz (based on power pack supplied)
