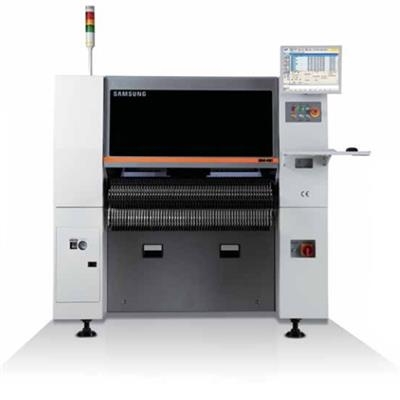

Hanwha - SM481 - Advanced High Speed Flexible Mounter
Hanwha - SM481 - Advanced High Speed Flexible Mounter
Hanwha
169-SM481
Some items may not be available in all areas. Please contact our Customer Service team at (800) 405-1730 or info@murraypercival.com for more details and quoting info.
As a general component placer whose vision system is reinforced based on the platform of the SM471 high speed chip shooter and whose chip placement speed is the highest among the same class component placers, the SM481 realized achip placement speed of 39,000 CPH, the highest among the same class component placers, by applying a head with one gantry and ten spindles as well as new flying vision and by maximizing the pickup and placement motion.
In addition, it is applicable up to 0402 chips and ?42mm ICs. It has improved actual productivity and placement quality by applying high speed and high precision electrically driven feeders. Furthermore, since it is designed to be compatible with SM series pneumatic feeders, it maximizes the customer’s operational convenience.
39,000 CPH(Optimum)
1 Gantry x 10 Spindles/Head
Applicable part: 0402 ~ ?42mm(H 15mm)
Applicable PCB: 460(L) x 400(W)(Standard) / Max. 740(L) x 460(W)(Option)
High speed, high precision and electrically driven feeder
Automatic pick-up position alignment function
Compatible with SM pneumatic feeders
New vacuum system and optimized pickup/placement motion SMART Feeder
